Wired switch
Showing 1–12 of 13 results
-
SOLAS Double Wired Dimmable IR Switch
Price: per piece
- IR, dimmable
- Finish/Colour: Graphite
- Size: 39 x 39 x 8 mm
- Input/Output voltage: 12/24 VDC
- Input/Output current: 5 mA
- PWM frequency: 1 kHz
- Sensor range: 4-9 cm
- Sensor wire length: 1000 mm ± 20 mm
- Control box wire length: 1500 mm ± 20 mm
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
-
SOLAS Double Wired Dimmable Touch Switch
Price: per piece
- Touch, dimmable
- Finish/Colour: Graphite
- Size: 39 x 39 x 8 mm
- Input/Output voltage: 12/24 VDC
- Input/Output current: 5 mA
- PWM frequency: 1 kHz
- Soft On/Off: 3s ± 10%
- Sensor wire length: 1000 mm ± 20 mm
- Control box wire length: 1500 mm ± 20 mm
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
-

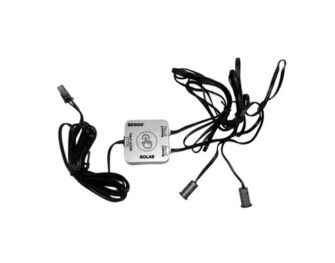

SOLAS Double Wired Touch Switch
Price: per piece
- Touch, non-dimmable
- Finish/Colour: Graphite
- Size: 39 x 39 x 8 mm
- Input/Output voltage: 12/24 VDC
- Input/Output current: 5 mA
- PWM frequency: 1 kHz
- Soft On/Off: 3s ± 10%
- Sensor wire length: 1000 mm ± 20 mm
- Control box wire length: 1500 mm ± 20 mm
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
-
SOLAS Double-Door Wired IR In-line Switch
Price: per piece
- IR, in-line, dual-door
- Finish/Colour: Graphite
- Size: 39 x 39 x 8 mm
- Input/Output voltage: 12/24 VDC
- Input/Output current: 5 mA
- PWM frequency: 1 kHz
- Sensor wire length: 1000 mm ± 20 mm
- Control box wire length: 1500 mm ± 20 mm
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
-
SOLAS Double-Door Wired IR Switch
Price: per piece
- Double-Door IR
- Finish/Colour: Graphite
- Size: 39 x 39 x 8 mm
- Input/Output voltage: 12/24 VDC
- Input/Output current: 5 mA
- PWM frequency: 1 kHz
- Sensor wire length: 1000 mm ± 20 mm
- Control box wire length: 1500 mm ± 20 mm
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
-
SOLAS Dual-Switched Driver
Price: per piece
- Wired switching
- Total output power: 40 W
- Finish/Colour: Black
- Size: 202 x 75 x 15 mm
- Input voltage: 200 – 240 VAC
- Input current: 300 mA (Max)
- Output voltage: 12 VDC
- Input frequency: 50/60 Hz
- Number of outputs: 2 + 8
- Control: 2 direct, 8 switched
- Required products: BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-859.08.130, BG-865.08.130
-
SOLAS Dual-Switched Driver
Price: per piece
- Wired switching
- Total output power: 60 W
- Finish/Colour: Black
- Size: 230 x 75 x 15 mm
- Input voltage: 200 – 240 VAC
- Input current: 420 mA (Max)
- Output voltage: 12 VDC
- Input frequency: 50/60 Hz
- Number of outputs: 2 + 8
- Control: 2 direct, 8 switched
- Required products: BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-859.08.130, BG-865.08.130
-
SOLAS Dual-Switched Driver
Price: per piece
- Wired switching
- Total output power: 100 W
- Finish/Colour: Black
- Size: 202 x 75 x 15 mm
- Input voltage: 200 – 240 VAC
- Input current: 650 mA (Max)
- Output voltage: 12 VDC
- Input frequency: 50/60 Hz
- Number of outputs: 2 + 8
- Control: 2 direct, 8 switched
- Required products: BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-859.08.130, BG-865.08.130
-

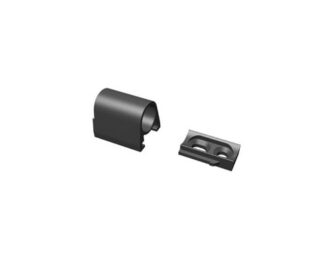

SOLAS Exposed Switch Housing
Price: per piece
- Material: ABS, PC
- Diameter: Ø 8 mm
Connector Housing - Size: 16 x 12.4 x 13 mm
Mounting Base - Size: 14.5 x 10.2 x 4.6 mm
- Required products: BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-865.08.130
-
SOLAS Multi-Switch Box
Price: per piece
- Finish/Colour: Black
- Material: ABS plastic
- Input/Output voltage: 12/24 VDC
- Input/Output current: 2 mA
- Required products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04, BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-859.08.130, BG-865.08.130
-
SOLAS Switched Driver
Price: per piece
- Wired switching
- Total output power: 20 W
- Finish/Colour: Black
- Size: 149 x 75 x 15 mm
- Input voltage: 200 – 240 VAC
- Input current: 150 mA (Max)
- Output voltage: 12 VDC
- Input frequency: 50/60 Hz
- Number of outputs: 2 + 6
- Control: 2 direct, 6 switched
- Required products: BG-855.08.130, BG-856.08.130, BG-857.08.130, BG-858.08.130, BG-859.08.130, BG-865.08.130
-
SOLAS Wired PIR Switch
Price: per piece
- Passive infrared (PIR)
- Finish/Colour: Graphite
- Size: 22 x 24 mm
- Input/Output voltage: 12/24 VDC
- Input/Output Current: 0.02 A
- Sensor range: 3.5 m (Max)
- Required Products: BG-873.08.XX.XX, BG-874.08.00.04, BG-876.08.01.04, BG-877.08.02.04, BG-878.08.04.04
