Hinges (Wood)
Showing all 7 results
-

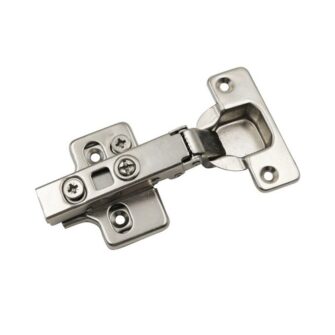

BERGO 110° 3D Adjustable Clip-On Hinges (Half overlay)
Login to view price• Finish/Colour: Nickel plated
• Material: Steel cup & hinge arm
• Mechanism: Soft close
• Adjustment: Side +/- 1.5 mm / Height +/- 2 mm (via mounting plate) / Depth from -1 to +3 mm
• Drilling depth: Hinge cup 12.0 mm
• Drilling pattern: 48/6
• Weight: 93 G
• Usage: Wood cabinet doors
• Type: Half overlay -
BERGO 110° 3D Adjustable Clip-On Hinges (Full Overlay)
Login to view price• Finish/Colour: Nickel plated
• Material: Cold-rolled steel
• Mechanism: Soft close
• Diameter: Hinge cup 35 mm
• Adjustment: Side +/- 1.9-2 mm / Height +/- 1.9-2 mm (via mounting plate) / Depth from -1 to +3 mm
• Drilling depth: Hinge cup 11.5 mm
• Door Thickness: 14-21 mm
• Load rating: Max 5Kg/Pair
• Weight: 113 G
• Usage: Wood cabinet doors
• type: Concealed -
BERGO 110° 3D Adjustable Clip-On Hinges (Half overlay)
Login to view price• Finish/Colour: Nickel plated
• Material: Cold-rolled steel
• Mechanism: Soft close
• Adjustment: Side +/- 1.9-2 mm / Height +/- 1.9-2 mm (via mounting plate) / Depth from -1 to +3 mm
• Drilling depth: Hinge cup 11.5 mm
• Door Thickness: 14-21 mm
• Weight: 74 G
• Usage: Wood cabinet doors
• Type: Half overlay -
BERGO 165° 3D Adjustable Clip-On Hinge
Login to view price• Finish/Colour: Nickel plated
• Material: Cold-rolled steel
• Mechanism: Soft close
• Adjustment: Side +/- 1.9-2 mm / Height +/- 1.9-2 mm (via mounting plate) / Depth from -1 to +3 mm
• Drilling depth: Hinge cup 11.5 mm
• Drilling pattern: 48 /6
• Weight: 195 G
• Usage: Wood cabinet doors
• Type: Full overlay -
BERGO 90° Clip-On Hinge
Login to view price• Finish/Colour: Nickel plated
• Material: Cold-rolled steel
• Mechanism: Soft close
• Drilling depth: Hinge cup 11.5 mm
• Drilling pattern: 48 /6
• Weight: 105 G
• Usage: Wood cabinet doors
• Type: Inset -
Bergo Mounting Plate
Login to view price• 4-hole
• Finish/Colour: Nickel plated
• Type: Wood cabinet door
• Required Products: BG-320.01.050, BG-320.01.051 -
ESSENTIALS 110° 3D Adjustable Clip-On Hinges (Full Overlay)
Login to view price• Finish/Colour: Nickel plated
• Material: Steel cup & hinge arm
• Mechanism: Soft close
• Adjustment: Side +/- 1.5 mm / Height +/- 2 mm (via mounting plate) / Depth from -1 to +3 mm
• Drilling depth: Hinge cup 12.0 mm
• Drilling pattern: 48/6
• Weight: 93 G
• Usage: Wood cabinet doors
• Type: Concealed
